Bicycle Water Bottle Cage Bolts: Pick the Right Titanium Length

Four bolts hold your bottle cages. Swap them for titanium — no seized threads, no corrosion, no mid-ride bolt losses. Here is what changes at each mount.

Down Tube Cage Bolts (M5×10)

The down tube mount sees road spray and frame flex first. Zinc-plated steel M5×10 bolts seize into the aluminum boss within a season. TiNE titanium M5×10 cage bolt: 0.7 g vs ~1.2 g steel. Grade 5 Ti-6Al-4V, no plating needed — the alloy resists corrosion on its own. Fits thin wrap-around cages (Elite Crono, Tacx Nano).

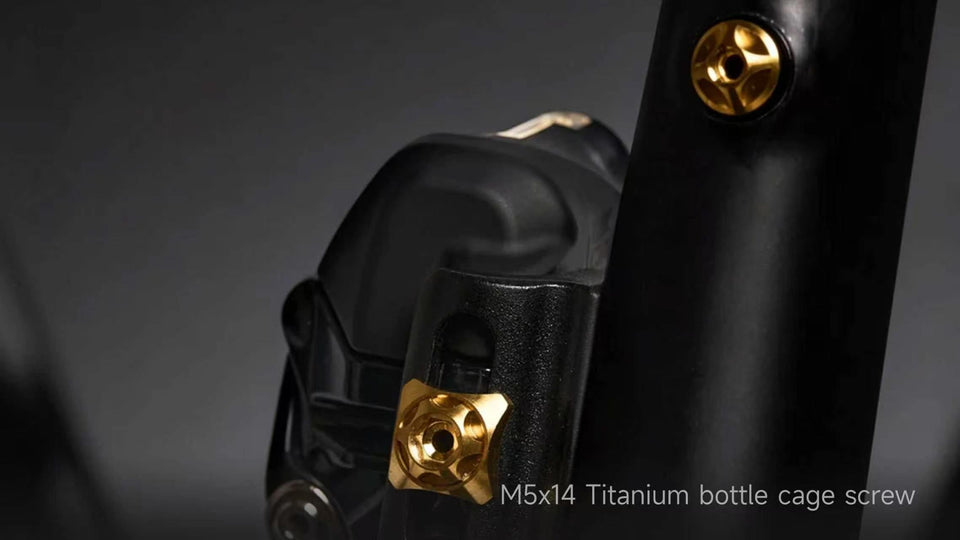

Seat Tube Cage Bolts (M5×14)

Seat tube mount carries heavier bottles under pedaling torque. Structured cages (Specialized Rib, Bontrager RL) need longer bolts. TiNE M5×14: 0.8 g, full thread engagement for thick cage bodies. Won't gall against aluminum bosses even after dozens of installs.

Material Comparison

Steel bolts rust, seize, and strip threads during removal — especially on carbon frames where bonded aluminum bosses corrode around the bolt. Aluminum bolts weigh less (~0.5 g) but heads snap if overtightened; one mistake and you're extracting a broken stud. Titanium: lighter than steel, tougher than aluminum, corrosion-proof indefinitely. Four titanium bolts save ~2 g while eliminating every common failure mode.

Material	Weight	Corrosion	Galling
Steel	~1.2g	Low	High
Aluminum	~0.5g	Medium	Extreme
TiNE Ti	0.7-0.8g	Excellent	Minimal

Install Tip

Alternate diagonal: front-left, rear-right, front-right, rear-left. Hand-tight plus a quarter turn — no torque wrench needed for M5 titanium in aluminum bosses.
