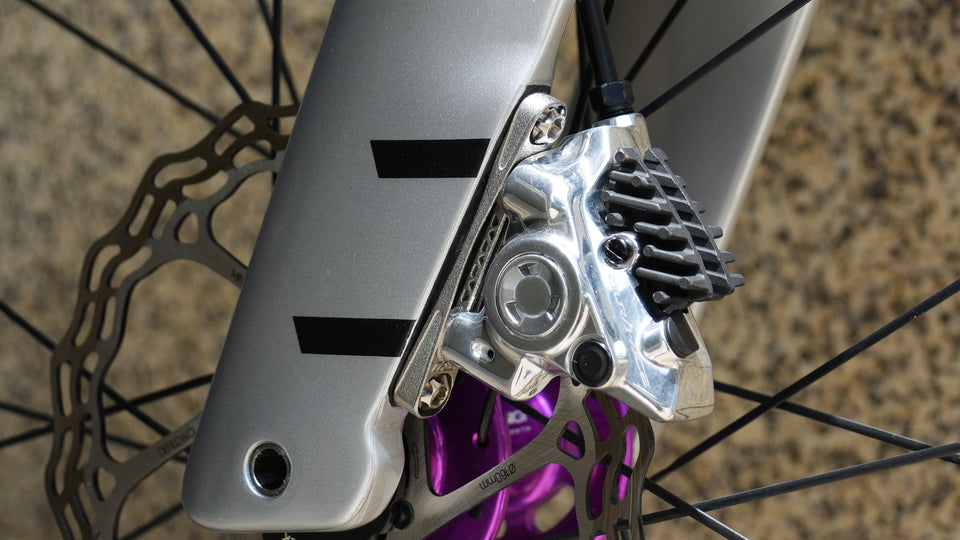

Flat Mount vs Post Mount: Do You Need an Adapter?

If your frame uses one standard and your caliper uses the other, you need an adapter. Here is how they compare.

What Is Post Mount?

Post mount (PM) is the older standard. Two threaded bosses protrude from the frame, and the caliper bolts directly on with M6 bolts. Common on MTB, gravel, and older road frames. Bolt length depends on rotor size.

What Is Flat Mount?

Flat mount (FM) is Shimano's newer standard. The caliper sits flush against a flat frame surface, secured by bolts threaded from the opposite side. It looks cleaner and saves a few grams. Most modern road frames (including Specialized SL8) use flat mount.

Key Differences

• Profile: Flat mount sits flush; post mount sticks out.
• Weight: Flat mount hardware is lighter — fewer adapter washers, shorter bolts.
• Compatibility: They are not interchangeable. A flat-mount caliper will not bolt to a post-mount frame without an adapter.
• Bolt direction: Post-mount bolts thread into the frame; flat-mount bolts thread through the frame into the caliper.

The Adapter Solution

A flat-mount-to-post-mount adapter lets you run a flat-mount caliper on a post-mount frame. These adapters are simple alloy brackets that bolt to the post-mount bosses and provide a flat mounting surface. When upgrading bolts, TiNE offers flat-mount titanium caliper mounts at 7.5 g (universal) and 5.9 g for Specialized SL8/S5 — saving over 8 g versus stock steel.
